Audit Agent Actions

TL;DR

• Every agent action — tool calls, model generations, incident handling, approvals — is logged to your Application Insights resource
• Query the customEvents table using KQL to see exactly what your agent did, when, and why
• Access logs directly from Monitor → Logs in the agent portal
• 9 distinct event types capture the full audit trail from user message to agent response

The problem: understanding what your agent did

Your agent investigates incidents, runs tools, and takes actions — but without visibility into those actions, you can't answer basic questions: What tools did the agent use? How many tokens did each investigation consume? Which response plans are producing results? Did the agent act autonomously, or did it wait for approval?

You need a queryable audit trail — not just outcomes, but the full chain of reasoning, tool execution, and decision-making.

---

Where to find your logs

Your agent automatically logs all actions to Azure Application Insights. An Application Insights resource is provisioned alongside your agent during creation.

To open your logs:

1. In the agent portal, go to Monitor → Logs
2. This opens your agent's Application Insights resource in the Azure Portal
3. Use KQL (Kusto Query Language) to query the customEvents table

The default query is traces | where timestamp > ago(1d). Change this to customEvents to see agent action telemetry.

---

Event types

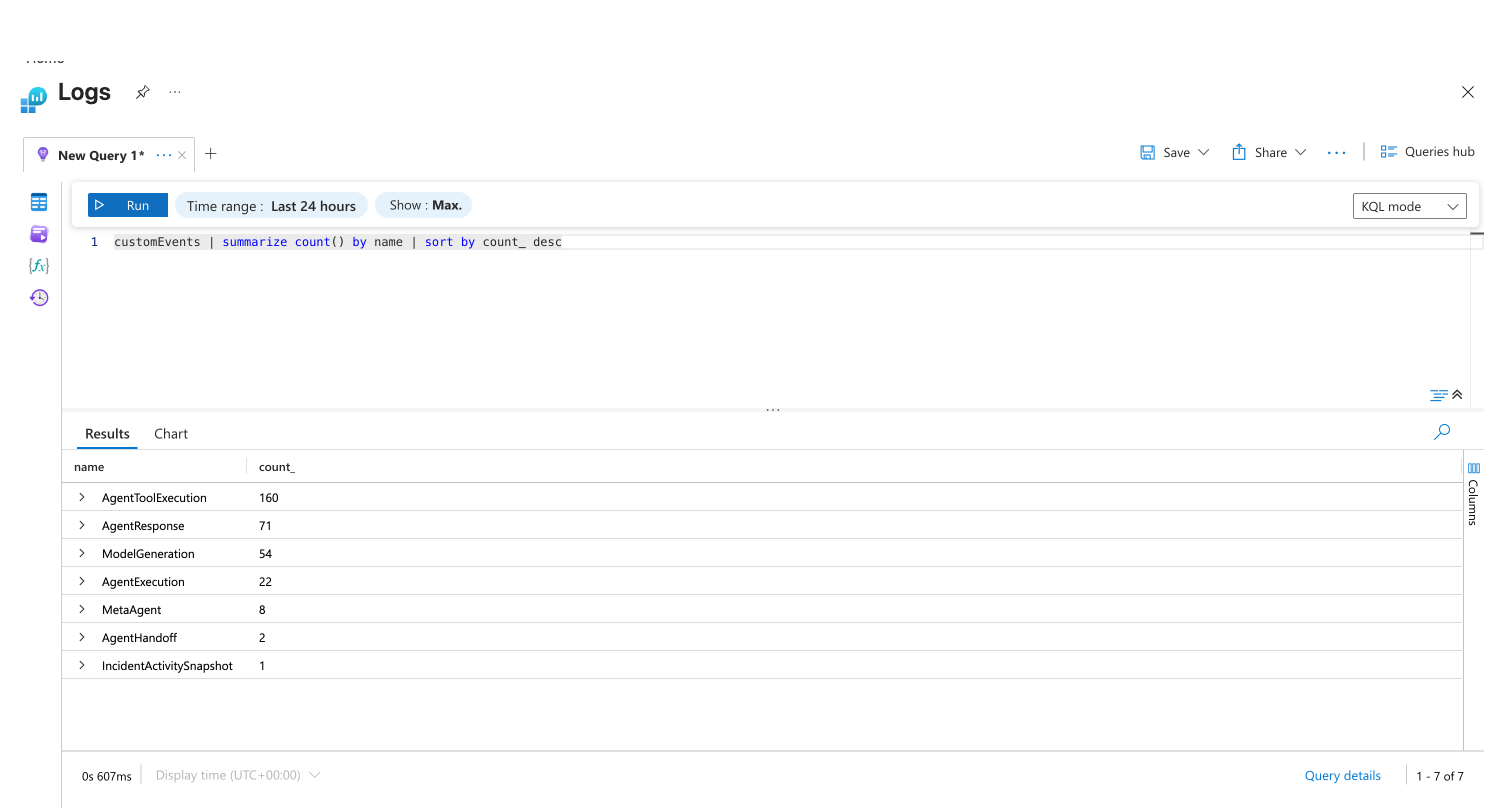

Your agent logs 9 custom event types to the customEvents table. This query shows all event types and their counts:

Event name	What it captures	Typical volume
AgentResponse	Chat responses sent to you	High
ModelGeneration	Every LLM call (input/output tokens, model ID)	High
AgentToolExecution	Every tool call (name, input, output)	High
AgentExecution	Agent session start/end lifecycle	Medium
MetaAgent	Agent routing and orchestration decisions	Medium
AgentHandoff	Cross-agent handoffs	Medium
IncidentActivitySnapshot	Incident lifecycle (severity, status, mitigation outcome)	Low
AgentAzCliExecution	Azure CLI commands run by the agent	Low
ApprovalDecision	Your approval or rejection of proposed actions	Low

---

Key events and their fields

Tool execution (AgentToolExecution)

Logged every time your agent calls a tool.

Field	Description	Example value
EventType	ToolStart or ToolEnd	ToolStart
ToolName	Name of the tool	SearchResource
ToolInput	Arguments passed	{"resourceTypes": ["microsoft.resources/subscriptions"]}
ToolOutput	Result returned (end only)	(tool output JSON)
SubAgentName	Agent that invoked the tool	meta_agent
CallId	Correlation ID for pairing	call_3DDMpLtzCljW...

customEvents
| where name == "AgentToolExecution"
| where customDimensions.EventType == "ToolStart"
| where timestamp > ago(7d)
| project timestamp,
    Tool = tostring(customDimensions.ToolName),
    Input = tostring(customDimensions.ToolInput)
| sort by timestamp desc

Incident lifecycle (IncidentActivitySnapshot)

Logged for every incident your agent handles — captures the full lifecycle from creation to resolution.

Field	Description	Example value
IncidentId	Platform incident ID	Q2VVG0T8K7AL0J
IncidentTitle	Incident description	DailyIssueTriager blocked: cannot access repo
IncidentSeverity	Severity from your platform	Not set
IncidentStatus	Current status	active
IncidentPlatform	Source platform	PagerDuty
IncidentMitigatedByAgent	Whether agent resolved it	True or False
IncidentAssistedByAgent	Whether agent helped investigate	True or False
AgentAutonomyLevel	How the agent handled it	autonomous or review
ResponsePlanId	Which response plan was used	PDtrigger
ResponsePlanCustom	Default or custom plan	True or False
IncidentImpactedService	Affected service	SRE Agent
IncidentCreatedOn	When incident was created	ISO 8601 datetime
IncidentHandledOn	When agent started handling	ISO 8601 datetime
IncidentMitigatedOn	When resolved (if mitigated)	ISO 8601 datetime

// Incident outcomes over the last 30 days
customEvents
| where name == "IncidentActivitySnapshot"
| where timestamp > ago(30d)
| project timestamp,
    IncidentId = tostring(customDimensions.IncidentId),
    Title = tostring(customDimensions.IncidentTitle),
    Platform = tostring(customDimensions.IncidentPlatform),
    MitigatedByAgent = tostring(customDimensions.IncidentMitigatedByAgent),
    AssistedByAgent = tostring(customDimensions.IncidentAssistedByAgent),
    Autonomy = tostring(customDimensions.AgentAutonomyLevel),
    ResponsePlan = tostring(customDimensions.ResponsePlanId)
| sort by timestamp desc

Model generation (ModelGeneration)

Logged for every LLM call — tracks token usage, model selection, and the requesting agent.

Field	Description	Example value
EventType	ModelGenerationStart, ModelGenerationEnd, or ModelGenerationError	ModelGenerationEnd
AgentName	Agent that made the LLM call	daily_report_agent
ModelId	Model used	gpt-4o
InputTokens	Tokens in the prompt	29828
OutputTokens	Tokens in the response	871
ThreadId	Conversation thread	bb171c1f-3bb2-4895-...

// Token usage by agent in the last 7 days
customEvents
| where name == "ModelGeneration"
| where customDimensions.EventType == "ModelGenerationEnd"
| where timestamp > ago(7d)
| extend Agent = tostring(customDimensions.AgentName),
    InputTokens = toint(customDimensions.InputTokens),
    OutputTokens = toint(customDimensions.OutputTokens),
    Model = tostring(customDimensions.ModelId)
| summarize TotalInput = sum(InputTokens),
    TotalOutput = sum(OutputTokens),
    Calls = count()
    by Agent, Model
| sort by TotalInput desc

Approval decisions (ApprovalDecision)

Logged when you approve or reject a proposed agent action.

// All approval decisions
customEvents
| where name == "ApprovalDecision"
| where timestamp > ago(30d)
| project timestamp, customDimensions

---

Common queries

What did my agent do in a specific thread?

customEvents
| where timestamp > ago(7d)
| where tostring(customDimensions.ThreadId) == "YOUR_THREAD_ID"
| project timestamp,
    Event = name,
    EventType = tostring(customDimensions.EventType),
    Tool = tostring(customDimensions.ToolName),
    Agent = tostring(customDimensions.SubAgentName)
| sort by timestamp asc

Which tools are used most often?

customEvents
| where name == "AgentToolExecution"
| where customDimensions.EventType == "ToolStart"
| where timestamp > ago(30d)
| summarize Count = count() by Tool = tostring(customDimensions.ToolName)
| sort by Count desc
| take 20

How many incidents did the agent mitigate vs. assist?

customEvents
| where name == "IncidentActivitySnapshot"
| where timestamp > ago(30d)
| summarize
    Total = count(),
    MitigatedByAgent = countif(tostring(customDimensions.IncidentMitigatedByAgent) == "True"),
    AssistedByAgent = countif(tostring(customDimensions.IncidentAssistedByAgent) == "True")

Daily token consumption trend

customEvents
| where name == "ModelGeneration"
| where customDimensions.EventType == "ModelGenerationEnd"
| where timestamp > ago(30d)
| extend InputTokens = toint(customDimensions.InputTokens),
    OutputTokens = toint(customDimensions.OutputTokens)
| summarize TotalTokens = sum(InputTokens) + sum(OutputTokens) by bin(timestamp, 1d)
| render timechart

---

Shared fields on all events

Every custom event includes these fields for correlation and tracing:

Field	Description
gen_ai.agent.id	ARM resource ID of your agent
gen_ai.agent.name	Agent name
TraceId	OpenTelemetry trace ID — correlates events across a single request
SpanId	OpenTelemetry span ID
ParentSpanId	Parent span for call hierarchy
ThreadId	Conversation thread GUID
LogTimestamp	ISO 8601 timestamp
CorrelationId	Short correlation ID for log grouping

Use TraceId to follow a single request from user input through agent reasoning, tool calls, and response.

---

Azure Activity Log

For Azure resource-level operations (creating, updating, or deleting the agent resource itself), use the Azure Activity Log. This captures all ARM-level operations on your agent, managed identity, and Application Insights resources.

Access the Activity Log in the Azure Portal under your agent's resource group.

---

Get started

Audit logging is enabled automatically for every agent. Open Monitor → Logs in the agent portal to query action history with KQL.

Resource	What you'll learn
Create a Kusto Tool →	Build reusable KQL queries to mine your audit data
Permissions →	How RBAC controls who can query audit data

Related capabilities

Capability	What it adds
Track Incident Value →	Visual dashboards built on IncidentActivitySnapshot telemetry
Monitor Agent Usage →	AAU consumption tracking and session insights
Run Modes →	How ReadOnly, Review, and Autonomous affect agent behavior
Permissions →	Azure RBAC and data-plane permission model
