Create Kusto Tool

What you'll build

A parameterized Kusto tool that runs exact KQL queries against your Azure Data Explorer database with deterministic, repeatable results. Learn more → Kusto Tools. Time: ~15 minutes.

Prerequisites

• Azure Data Explorer cluster with AllDatabasesViewer role granted to the agent's managed identity (see Kusto Tools prerequisites)
• Kusto connector configured (see Setup Kusto Connector)
• Access to Builder in SRE Agent portal

Steps

Step 1: Navigate to the Agent Canvas

1. Open the SRE Agent portal
2. Select your agent
3. Click Builder in the left navigation
4. Click Agent Canvas

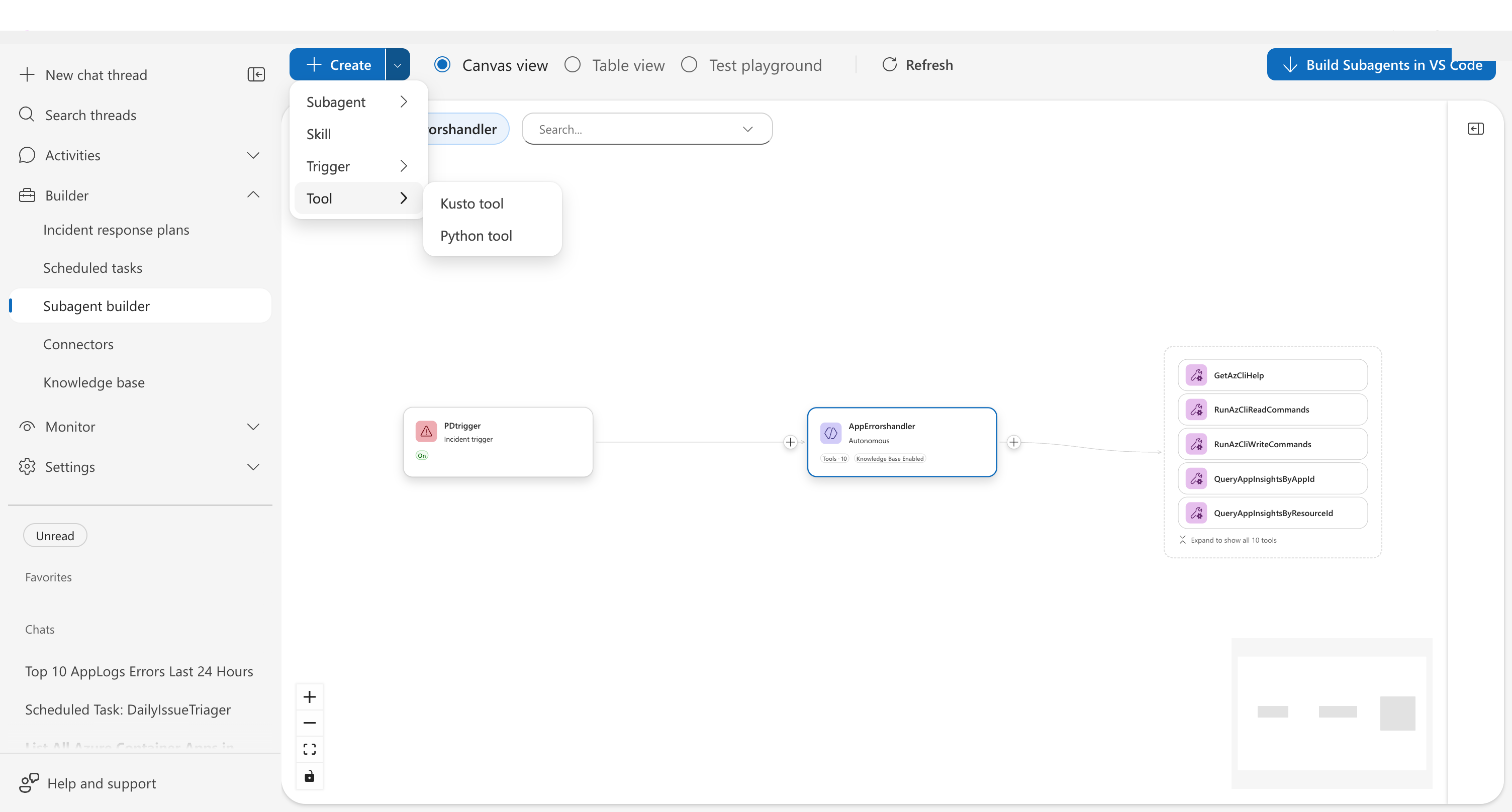

Step 2: Open the tool creation form

1. Click the Create dropdown in the top toolbar
2. Select Tool → Kusto tool

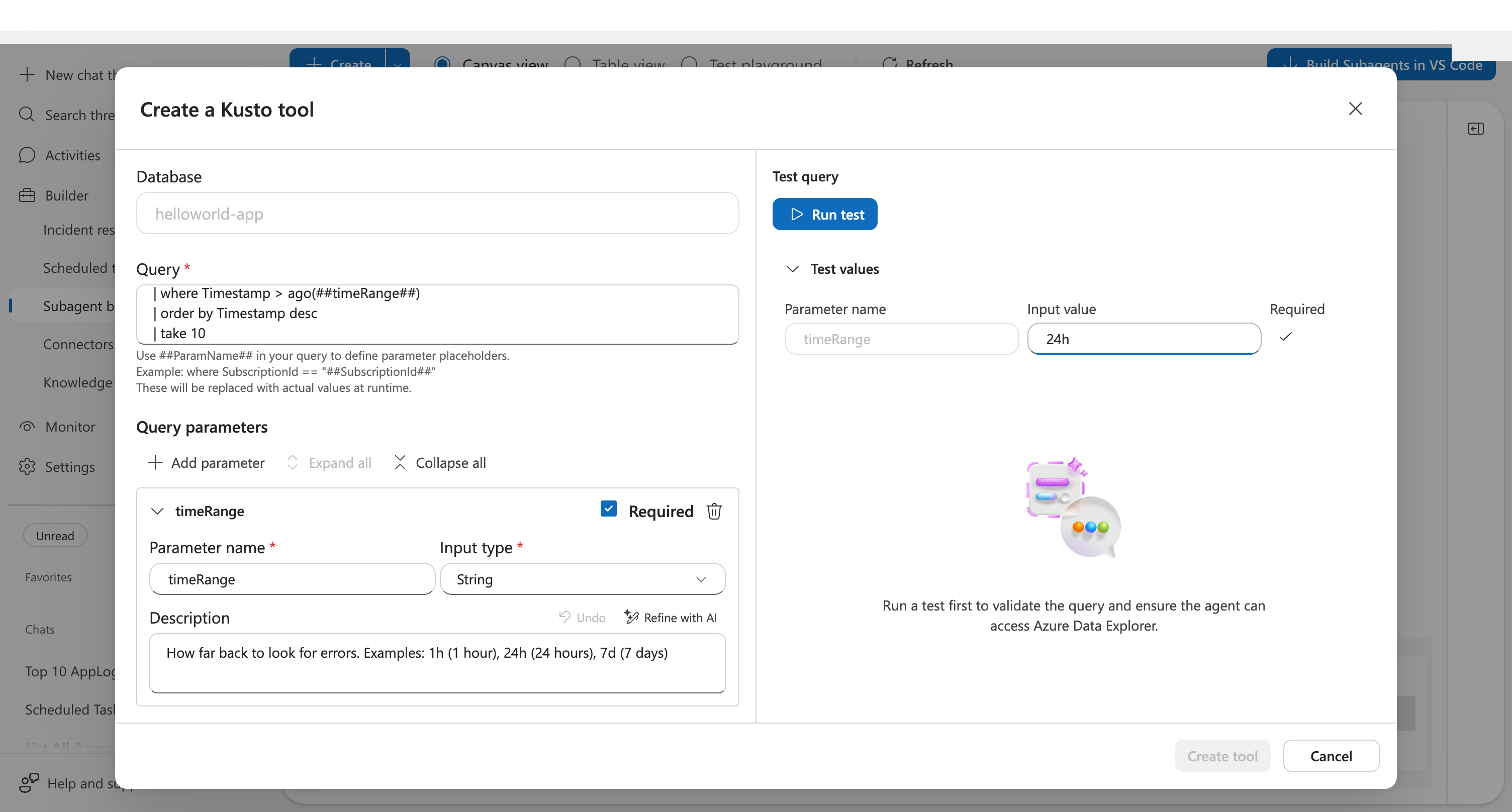

Step 3: Fill in the tool details

Complete the form:

Field	Value	Description
Tool name	QueryAppLogs	How the agent references this tool
Description	"Query AppLogs table for errors in the specified time range"	When the agent should use this tool
Connector	(select your Kusto connector)	The ADX connection to use
Database	(auto-populated from connector URL)	Your database name
Query	See below	Your KQL query with parameters

Example query:

AppLogs
| where Timestamp > ago(##timeRange##)
| where Level == "Error"
| order by Timestamp desc
| take 10

The ##timeRange## syntax creates a parameter. When someone asks "show errors from the last 24 hours," the agent fills in timeRange = 24h.

Step 4: Add the parameter

1. Scroll to the Parameters section
2. Click Add parameter
3. Enter:
   • Name: timeRange
   • Type: String
   • Description: "How far back to look (e.g., 1h, 24h, 7d)"

The parameter appears in the Parameters table below your query.

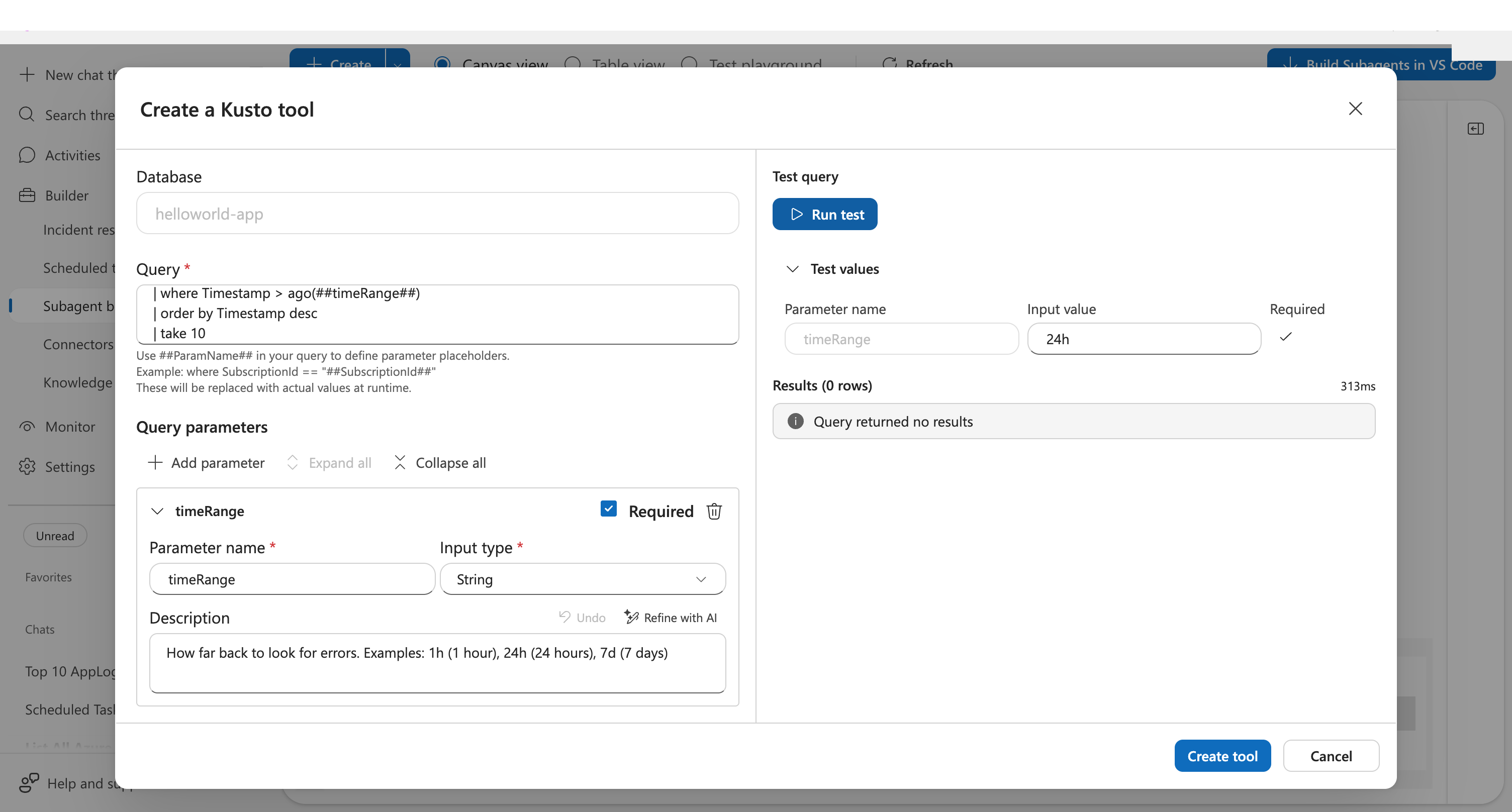

Step 5: Test the query

1. Click Test at the bottom of the form
2. Enter a test value for timeRange (e.g., 7d)
3. Verify the query executes successfully

Checkpoint: You should see execution time and a green checkmark confirming the query runs. Even if it returns 0 rows, the checkmark means the query syntax is valid.

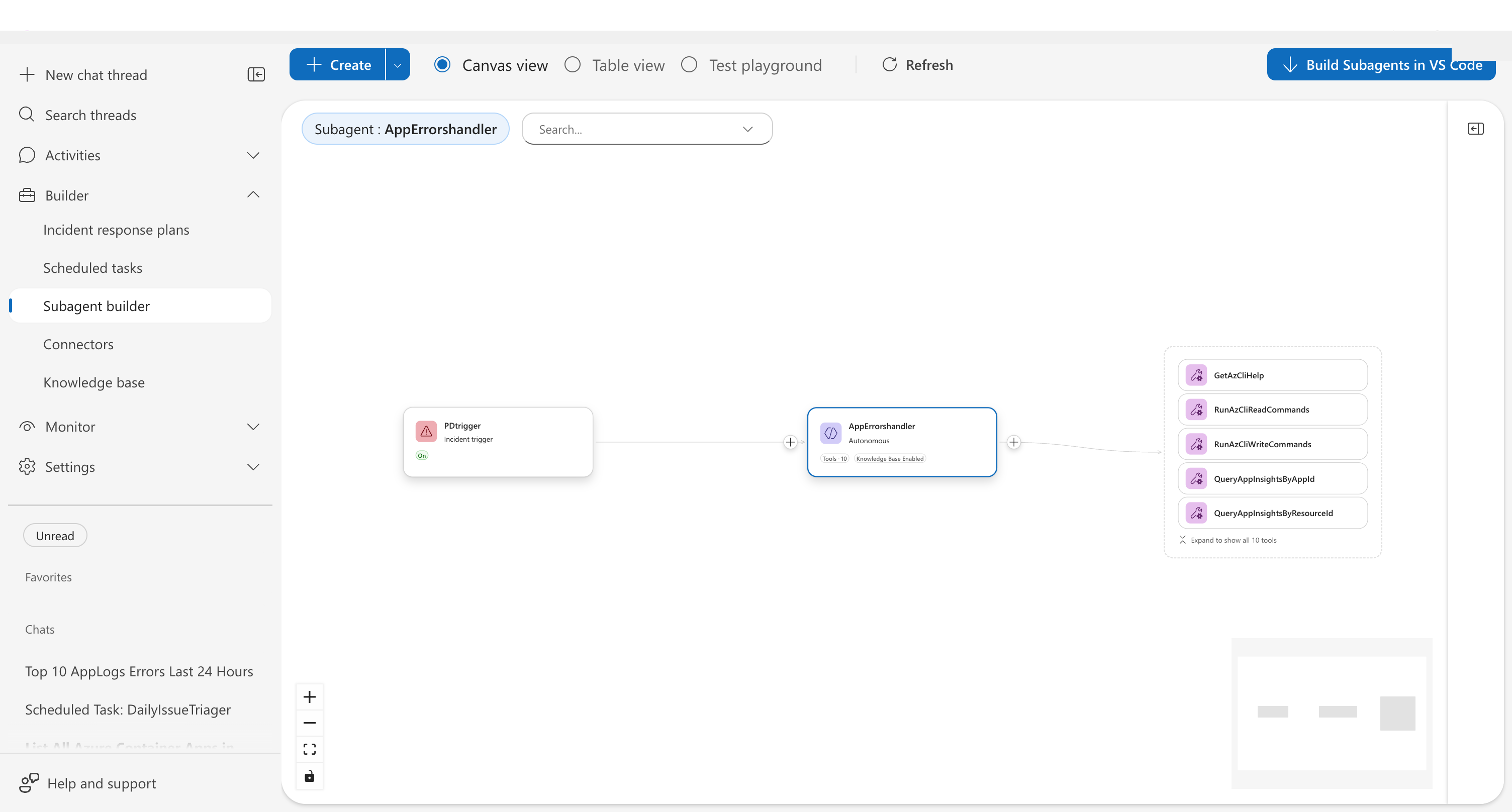

Step 6: Create the tool

Click Create to save your Kusto tool.

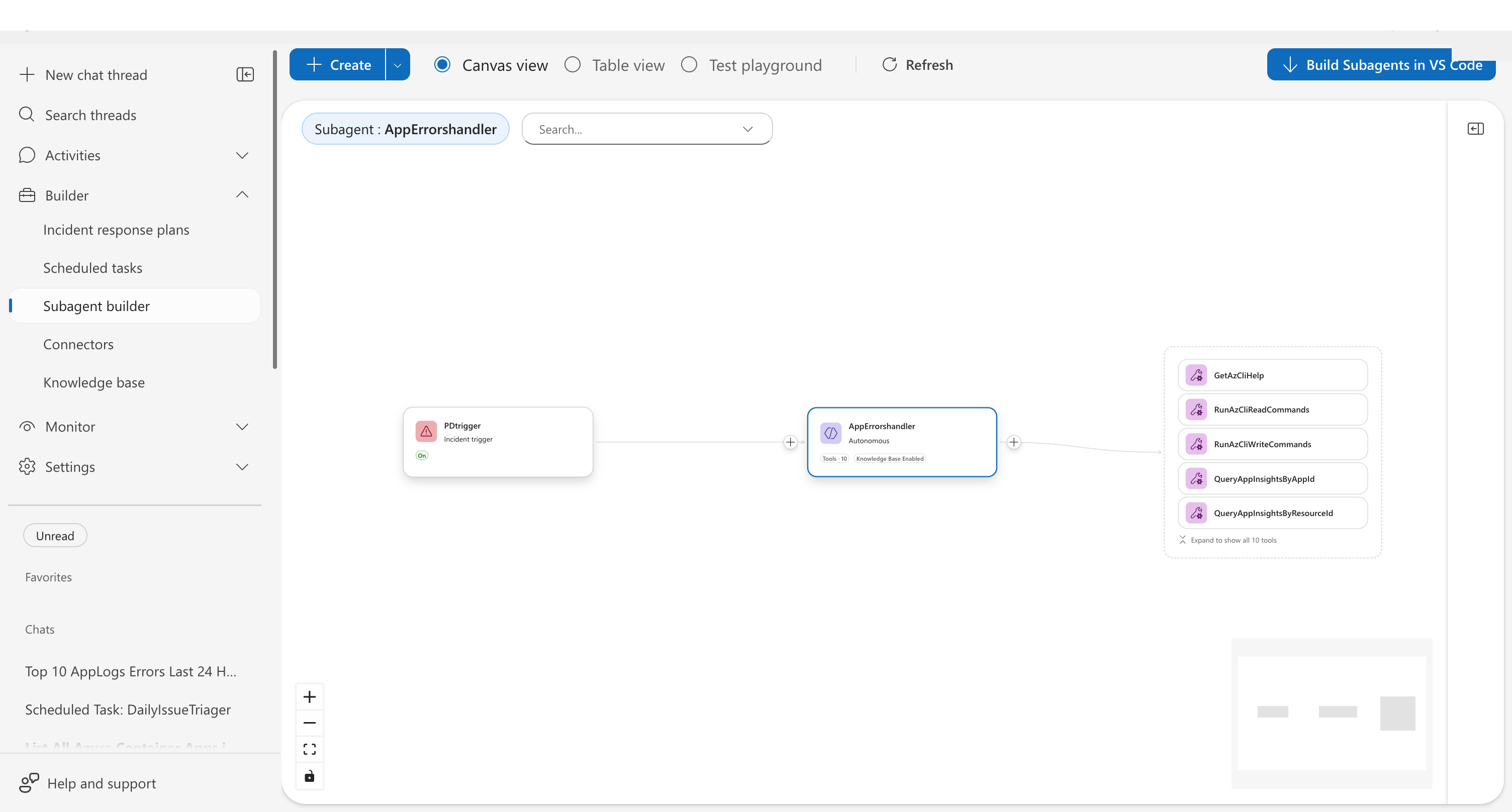

Step 7: Add the tool to a custom agent

Your tool is created but not yet attached to a custom agent. To use it:

1. In the Canvas view, find your custom agent
2. Click the + button on the right side of the custom agent card
3. Select Add existing tools
4. Check your Kusto tool from the list
5. Click Add tools

The tool count on your custom agent card increases after adding.

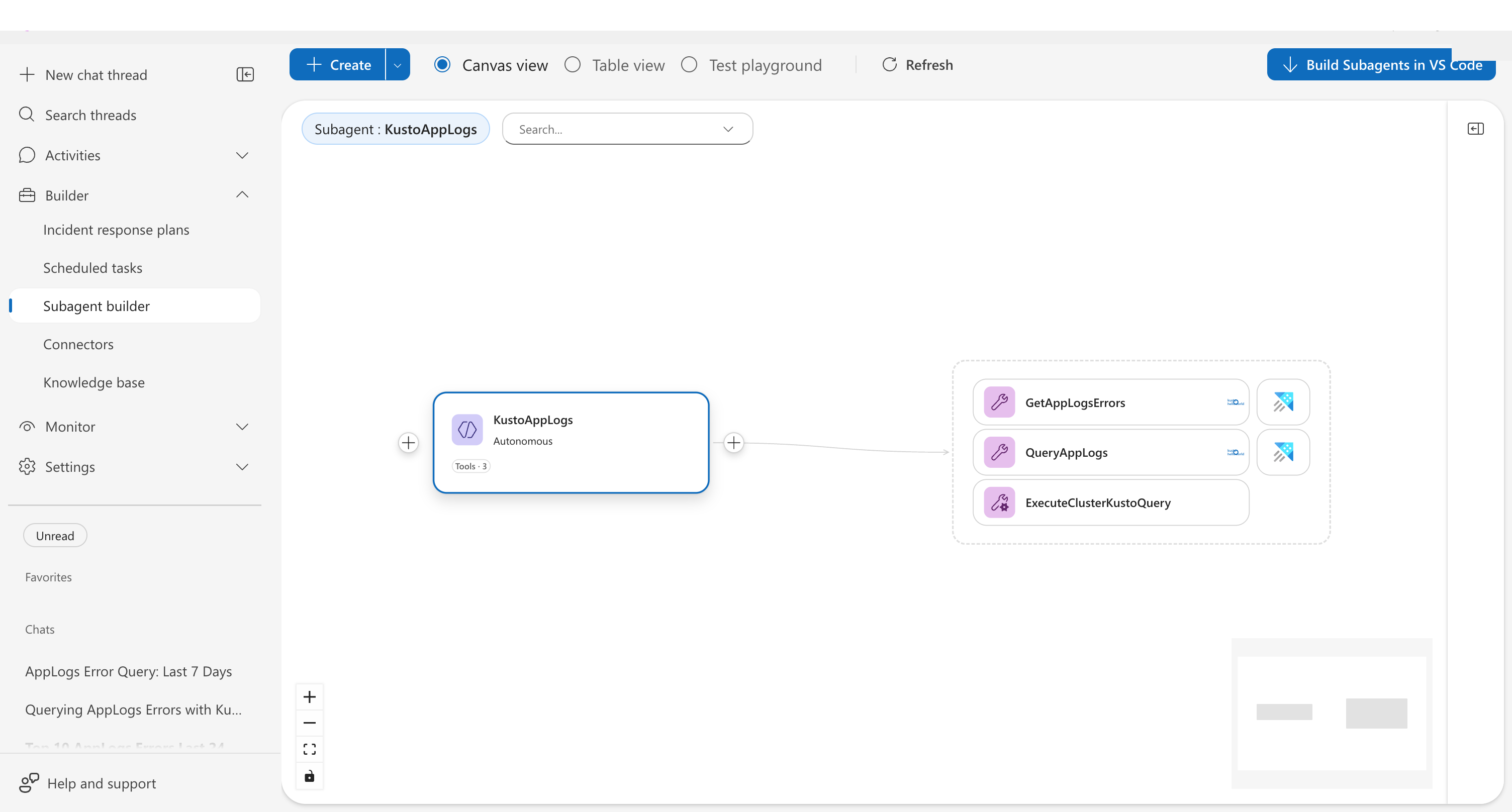

Step 8: Test in the playground

1. Click Test Playground in the left navigation
2. Select your custom agent from the dropdown
3. Ask: "Show me errors from the last 7 days"
4. The agent invokes your tool with timeRange = 7d

Checkpoint: You see the agent call your Kusto tool and return query results. The exact query you wrote runs against your cluster.

Parameter syntax

Use ##parameterName## or $parameterName to mark parameter placeholders in your queries:

query: |-
  AppExceptions
  | where TimeGenerated > ago(##timeRange##)
  | where ServiceName == "$serviceName"

Both syntaxes work identically. The agent substitutes values at runtime.

Execution modes

Mode	Use when
Query	Query is defined inline in YAML (most common)
Function	Query logic is stored as a function on the ADX cluster
Script	Query is in an external .kql file

# Function mode example
spec:
  type: KustoTool
  mode: Function
  function: GetRecentErrors

# Script mode example
spec:
  type: KustoTool
  mode: Script
  file: queries/complex-analysis.kql

Example: Deployment correlation tool

api_version: azuresre.ai/v2
kind: ExtendedAgentTool
metadata:
  name: get-recent-deployments
spec:
  type: KustoTool
  connector: devops-logs
  mode: Query
  database: deployments
  description: "Get deployments in a time range for a service"
  toolMode: Auto
  query: |-
    Deployments
    | where TimeGenerated > ago(##timeRange##)
    | where ServiceName == "##serviceName##"
    | project TimeGenerated, Version, DeployedBy, Environment
    | order by TimeGenerated desc
  parameters:
    - name: serviceName
      type: string
      description: "Name of the service"
    - name: timeRange
      type: string
      description: "How far back to look (e.g., 1h, 24h)"

---

Edit or delete a tool

Edit

1. On the Agent Canvas, click the tool node to open the info panel
2. Click the edit (pencil) icon in the panel header
3. The edit dialog opens with your current settings — modify the query, parameters, or connector
4. Click Save

Delete

1. Click the tool node to open the info panel
2. Click the ⋯ (more actions) menu in the panel header
3. Select Delete tool
4. Confirm the deletion in the dialog

Deleted tools are immediately removed from any custom agents that were using them.

What you learned

• How to create a Kusto tool with parameterized KQL queries
• How to use parameter syntax (##paramName##) for dynamic values
• How to choose between Query mode and Command mode
• How to assign tools to custom agents for specialized use
