Code Interpreter

Preview

TL;DR

• Analyze data, generate charts, and create PDF reports — all from a chat prompt
• Run Python and shell commands in a secure sandbox with 700+ preinstalled packages
• Upload files for processing and download results directly in the conversation

The problem

When an incident fires or a stakeholder asks for a report, the analysis work falls on you. You pull data from Kusto, export it to CSV, open a Jupyter notebook or Excel, write scripts to parse and aggregate, generate charts, format into a PDF, and share it on Teams. That loop takes 30 minutes on a good day — longer when you're context-switching between tools at 3 AM.

Your agent can already query Azure Monitor and Kusto. But querying data is only the first step. Turning raw query results into insights — aggregations, trend analysis, visualizations, formatted reports — requires computation. Without a code execution environment, your agent can describe what the data shows but can't actually process it.

How Code Interpreter works

When you ask your agent to analyze data or generate a report, it writes Python code, executes it in a secure sandbox, and returns the results directly in your conversation.

Capability	What it enables
Python execution	Data analysis with pandas, numpy, scipy; visualizations with matplotlib, seaborn, plotly
Shell commands	File manipulation, text processing with grep/awk/sed
File operations	Read, write, search, and list files in the sandbox workspace
Report generation	Create PDF, Excel, CSV, HTML, DOCX, and PPTX files for download
Network access	Fetch data from APIs, download files, scrape web pages

The environment comes with 700+ packages preinstalled — including pandas, matplotlib, plotly, reportlab, requests, and Playwright for browser automation.

What happens when you ask a question

1. You ask a question that requires computation
2. Your agent writes Python code to process the data
3. Code executes in an isolated Azure Container Apps session (typically 15–30 seconds)
4. Results return to the conversation — text output, inline images, or downloadable files

Each conversation thread gets its own session. Files persist across multiple code executions within the same thread, so your agent can build on previous results.

What makes this different

Code Interpreter runs computations inside your investigation workflow. You don't leave the conversation. You don't context-switch. Your agent reasons about results and continues investigating.

	Before	After
Data analysis	Export to CSV, open Jupyter, write script, interpret results	Ask in chat, get analysis with explanation
Report generation	Write Python, format PDF, share manually	"Create a PDF report" — download link in chat
Quick calculations	Open calculator or write one-off script	Ask the question, get the answer with methodology
File processing	Download, local processing, upload results	Upload file, agent processes, download results

The sandbox goes beyond code execution — it's part of your agent's reasoning loop. Your agent decides when code execution is the right approach, writes the code, runs it, interprets the results, and uses those results to continue the investigation.

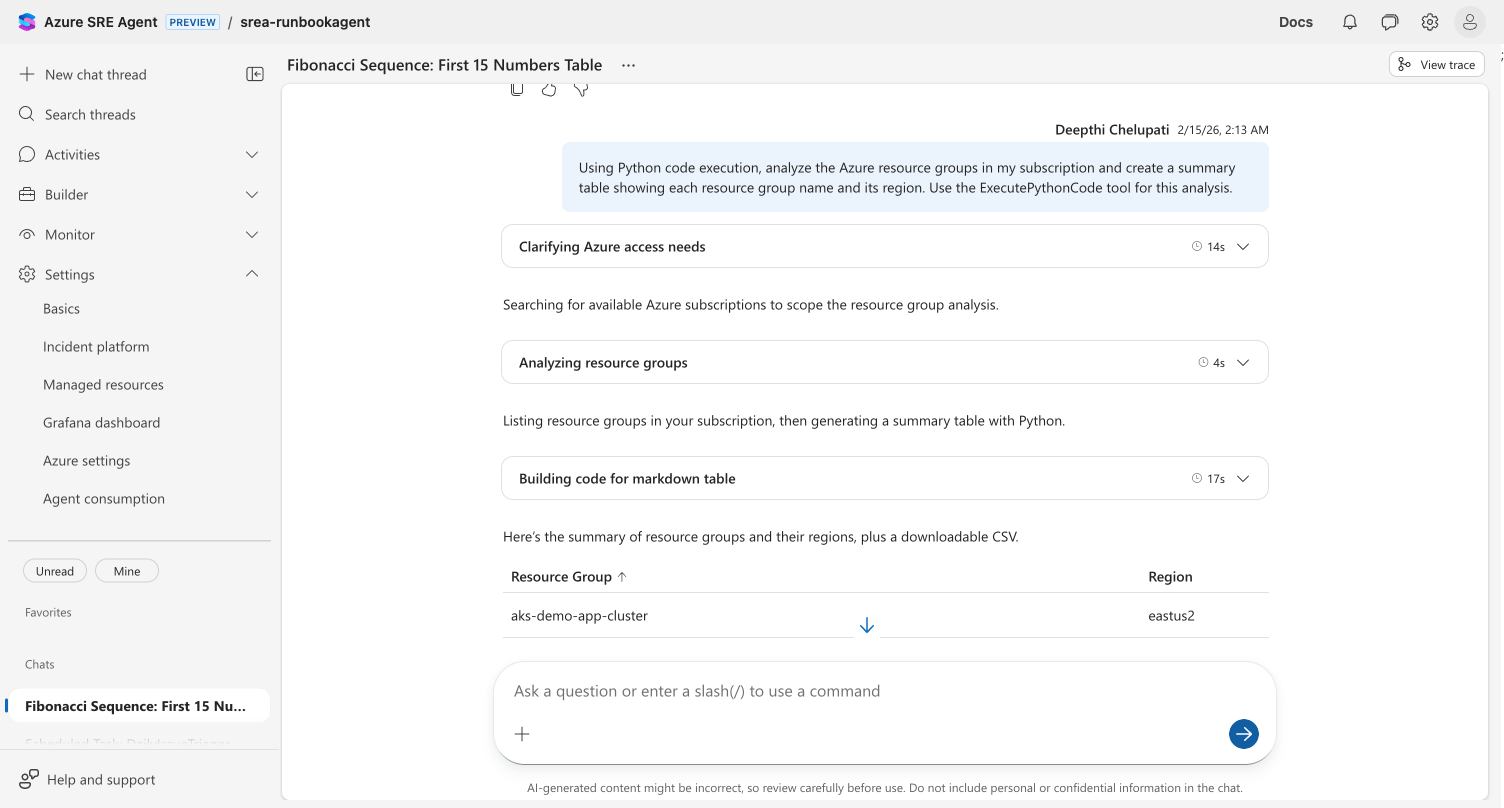

Example: Analyze Azure resource groups

Ask your agent:

Using Python code execution, analyze the Azure resource groups in my subscription
and create a summary table showing each resource group name and its region.

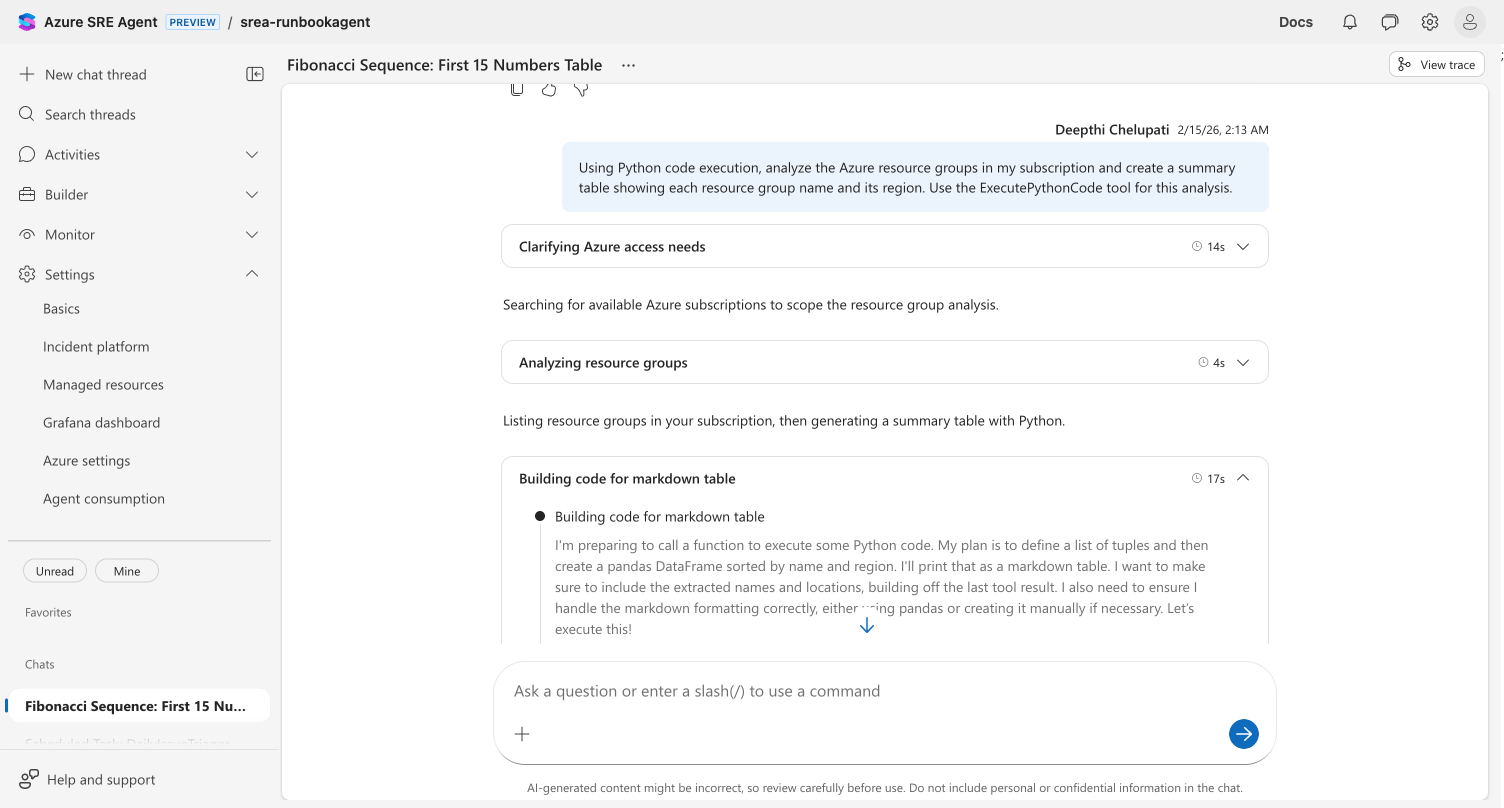

Your agent:

1. Queries Azure for resource group data
2. Writes Python to create a pandas DataFrame
3. Formats the data as a sorted markdown table
4. Generates a downloadable CSV file

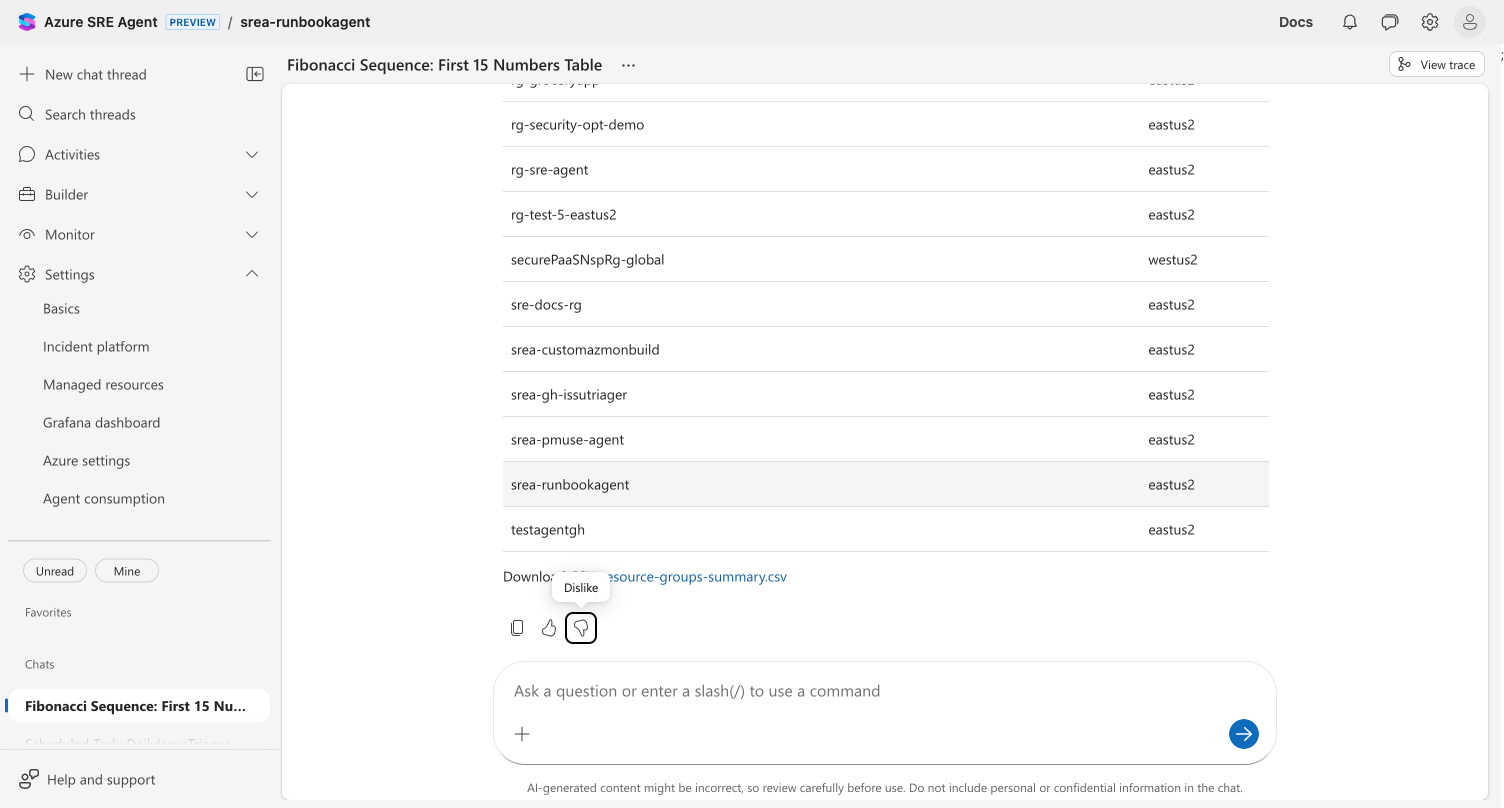

The result includes both the formatted table in chat and a downloadable CSV — all from a single prompt.

More examples

What you ask	What your agent does
"Analyze the last 1000 errors from App Insights and chart the top 10 patterns"	Queries App Insights, aggregates errors with pandas, generates a matplotlib bar chart
"Create a PDF report of SLA compliance for the last 30 days by service"	Calculates uptime percentages, builds tables with reportlab, includes trend charts
"Compare deployment frequency across my resource groups this month"	Fetches deployment history, computes metrics, formats comparison table with CSV export
"Parse this uploaded CSV and show me which services had the most P1 incidents"	Reads uploaded file with pandas, groups and aggregates, returns structured analysis

Available tools

Code Interpreter provides eight tools your agent uses automatically:

Tool	What it does
Execute Python	Run Python code with 700+ preinstalled packages
Run shell command	Execute bash commands for file manipulation and text processing
Generate PDF report	Create formatted PDF documents with charts and tables
Read file	Read text files with pagination (up to 2,000 lines per read)
Search files	Grep-style text search across session files
List files	View all files in the sandbox workspace
Download file	Retrieve any file from the sandbox for viewing or saving
Upload file	Upload files to the sandbox for processing

Sandbox security

Code runs in an isolated environment with multiple layers of protection:

Protection	How it works
Isolation	Each execution runs in its own Azure Container Apps container
Session scope	Files are scoped to /mnt/data — no access to the host system
Path controls	Path traversal (../) and absolute paths are blocked
Timeouts	Python: up to 900 seconds. Shell: up to 240 seconds
Audit trail	All code execution is logged and auditable
Network	Outbound access is enabled for API calls and data fetching

Limits

Constraint	Limit
Python code length	20,000 characters per execution
Python execution timeout	5–900 seconds (default: 120 seconds)
Shell command timeout	5–240 seconds (default: 120 seconds)
PDF generation timeout	5–900 seconds (default: 180 seconds)
File read	Up to 2,000 lines per read
Search results	Up to 500 matches per search
Output truncation	4,000 characters (stdout), 2,000 characters (stderr)
Background execution	Not supported

Preinstalled packages

The sandbox includes 700+ Python packages. Here are some commonly used for SRE workflows:

Category	Packages
Data analysis	pandas, numpy, scipy, statistics
Visualization	matplotlib, seaborn, plotly
Report generation	reportlab, openpyxl, python-docx, python-pptx
Web & API	requests, beautifulsoup4, playwright
Image processing	Pillow
File formats	pyyaml, openpyxl, lxml

Enabling Code Interpreter

Code Interpreter is available as a preview feature. To enable it:

1. Navigate to sre.azure.com and select your agent
2. Go to Settings → Basics
3. Toggle Early access to features on

Once enabled, your agent automatically uses Code Interpreter when a prompt requires computation, file processing, or report generation. No additional configuration is needed.

Tips for better results

Be specific about what you want

Vague: "Analyze the data"
Specific: "Analyze the last 7 days of deployment data and show me
          which services had the most failed deployments as a bar chart"

Mention output format

"Create a PDF report with..."
"Show me the results as a table"
"Generate an Excel file with..."

Upload files for complex analysis

For large datasets, upload the file rather than pasting data into the prompt. Your agent reads uploaded files efficiently:

I uploaded incident-data.csv. Parse it and show me which services
had the most P1 incidents last month.

Build iteratively

Code Interpreter maintains session state within a thread. Results from one execution are available to the next:

Prompt 1: "List all resource groups and their regions"
Prompt 2: "Now create a bar chart showing how many resource groups are in each region"
Prompt 3: "Export that chart and the data as a PDF report"

Code Interpreter vs Python Tools

	Code Interpreter	Python Tools
Purpose	Ad-hoc analysis and report generation	Reusable custom functions
Code creation	Agent writes code on the fly	You create and save tools
Persistence	Code runs once per request	Tools persist and can be reused
Best for	One-off analysis, reports, data processing	Repeatable operations, custom business logic

Use Code Interpreter for analysis and reports. Use Python Tools for operations your agent should perform repeatedly.

Related capabilities

Capability	What it adds
Python Tools →	Create reusable custom tools for your agent
Kusto Tools →	Deterministic, repeatable Kusto queries
Azure Observability →	Built-in Azure monitoring and diagnostics

Try it yourself

→ Tutorial: Use Code Interpreter for data analysis
